Profile Planking
Tolplus N
The pronounced serrated profile gives Tolplus N excellent structural stability and outstanding slip resistance.
Find a contact person GratingsLike the Stepbloc range, it is ideally suited for catwalks, platforms and safety stairways. The steep profile geometry ensures rapid drainage, making Tolplus N particularly suitable for outdoor installations.

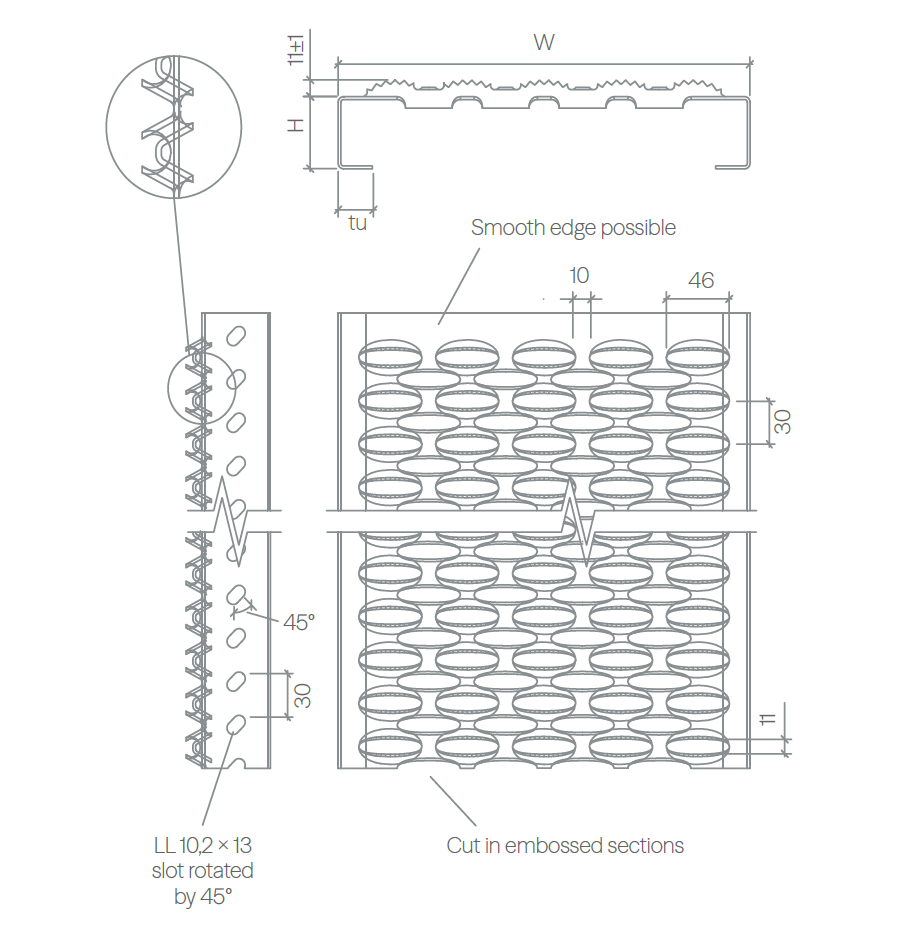

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
*Produced in France.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R12 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R12 |
| Aluminum [AIMg3] | 2,5 / 3,0 | R12 |
| Stainless steel [AISI 304L] | 2,0 | R12 |
| Preferred widths | 124 / 182 / 240 / 298 / 330 / 356 / 414 / 475 | |
| Preferred heights | 40 / 50 / 75 / 100 / other heights on request | |
| Lengths | max. 6,030 mm | |
| Length divider | 30 |
Matching accessories
Attachments for Tolplus N
BPR Universal clamp
Cast iron clamp for mounting from below, available in different versions.
BPR Plastic olive
For all Stepbloc molds with countersunk hole for countersunk head screws (DIN 7991).

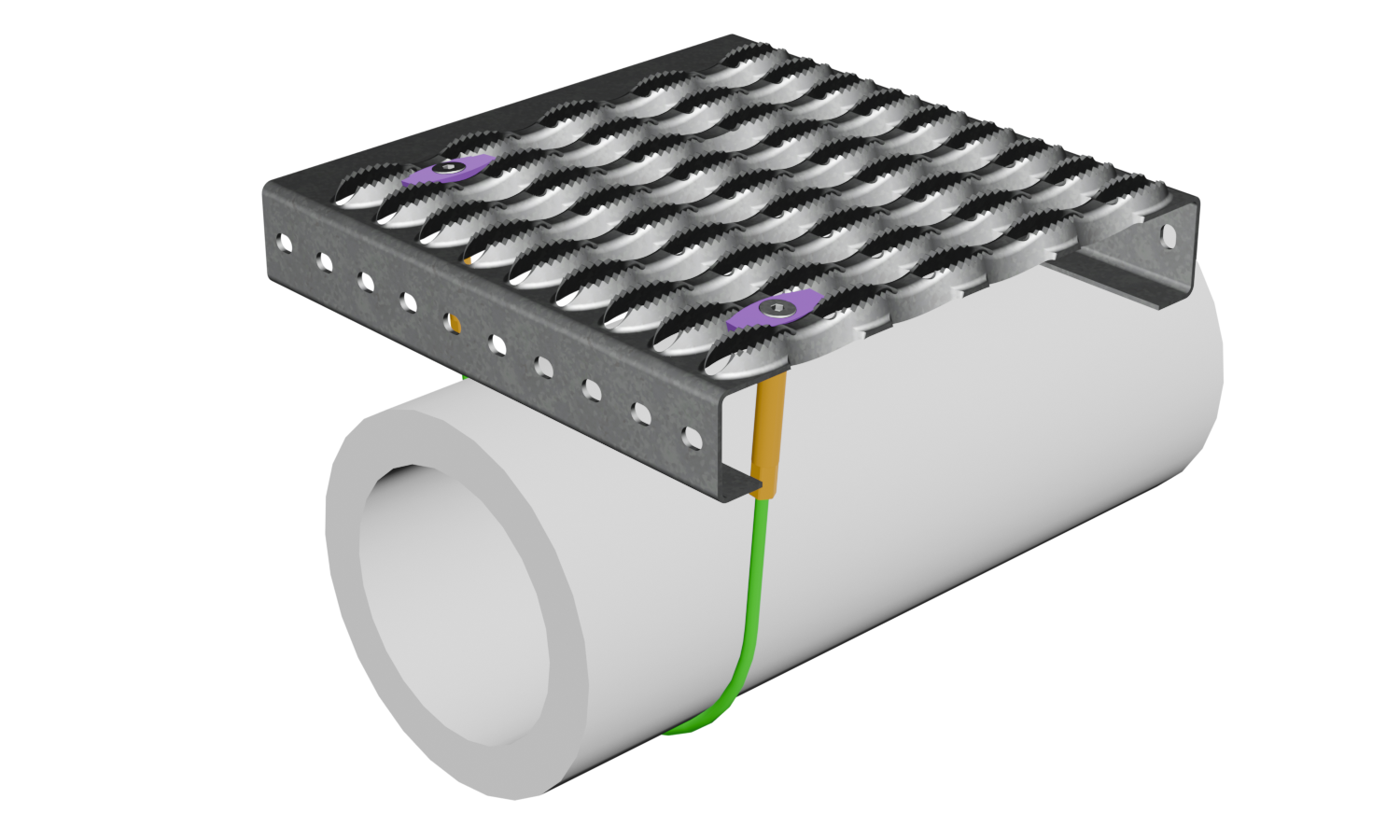

BPR Cabel connection
Various lengths, V2A with plastic coating and sleeves with M8 internal thread.
BPR Rondelle T03
Cast upper part for all Stepbloc and Drainstep molds with countersunk hole for countersunk head screws (DIN 7991).
BPR Fast fixing
Clamp connection with countersunk head screw M8.
BPR Flange
Clamp connection with cage nut and countersunk head screw M8.
