BPR setting technology Drainstep RH3 & Stepbloc F

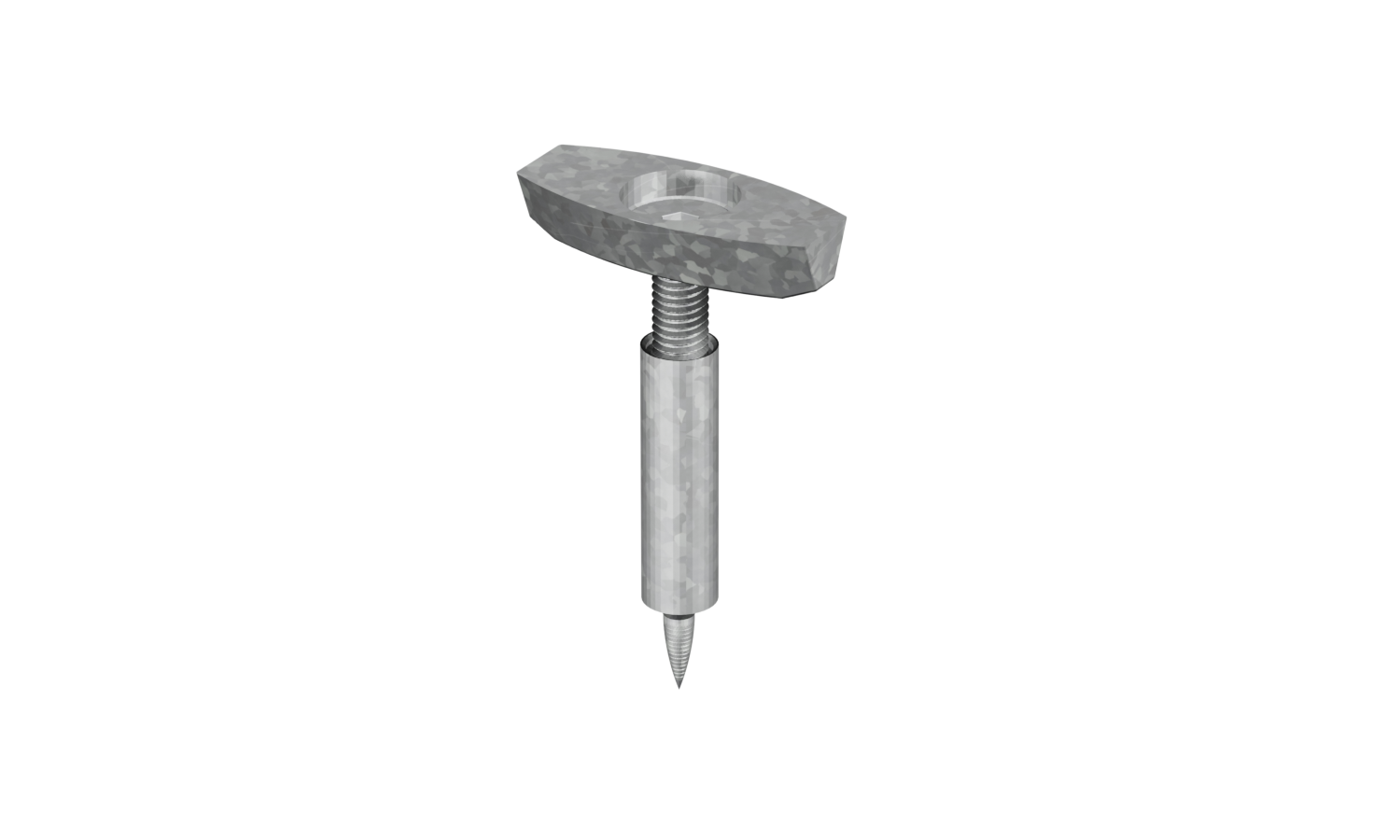

Consists of a setting bolt, T03 rondelle and a countersunk head screw with pressed long nut.
Sheet metal profile gratings

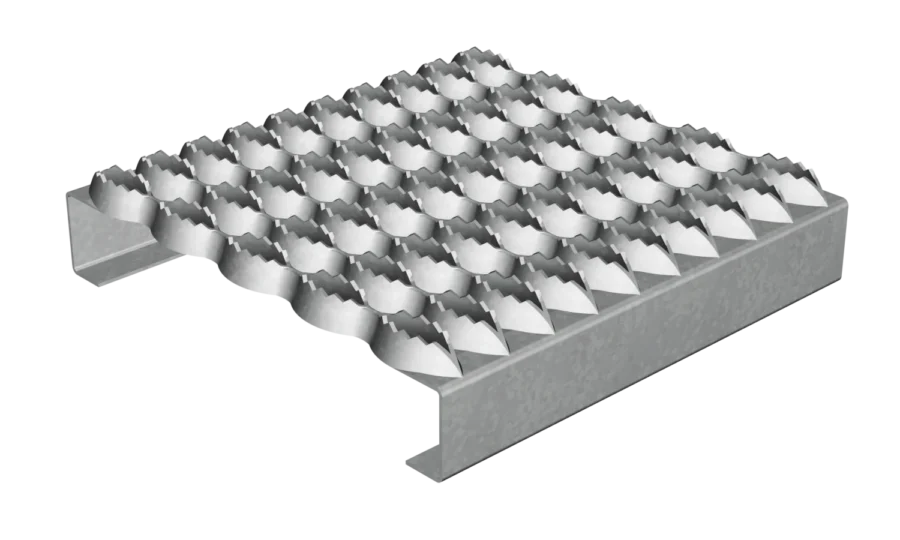

Stepbloc F
The extremely high serration of the strongly pronounced surface offers the best stability and high stability. The drainage effect is extremely high due to the steep positioning of the material.
Ihre AnsprechpartnerThis means that the Stepbloc F, like all other Stepbloc types, can also be used in sprinkler systems. It is ideal for use on catwalks, platforms and safety stairs in the commercial sector.

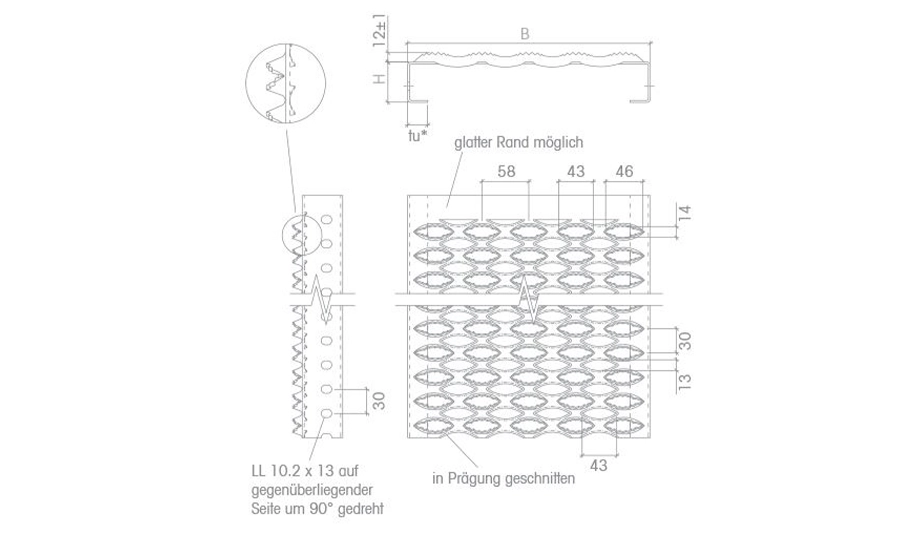

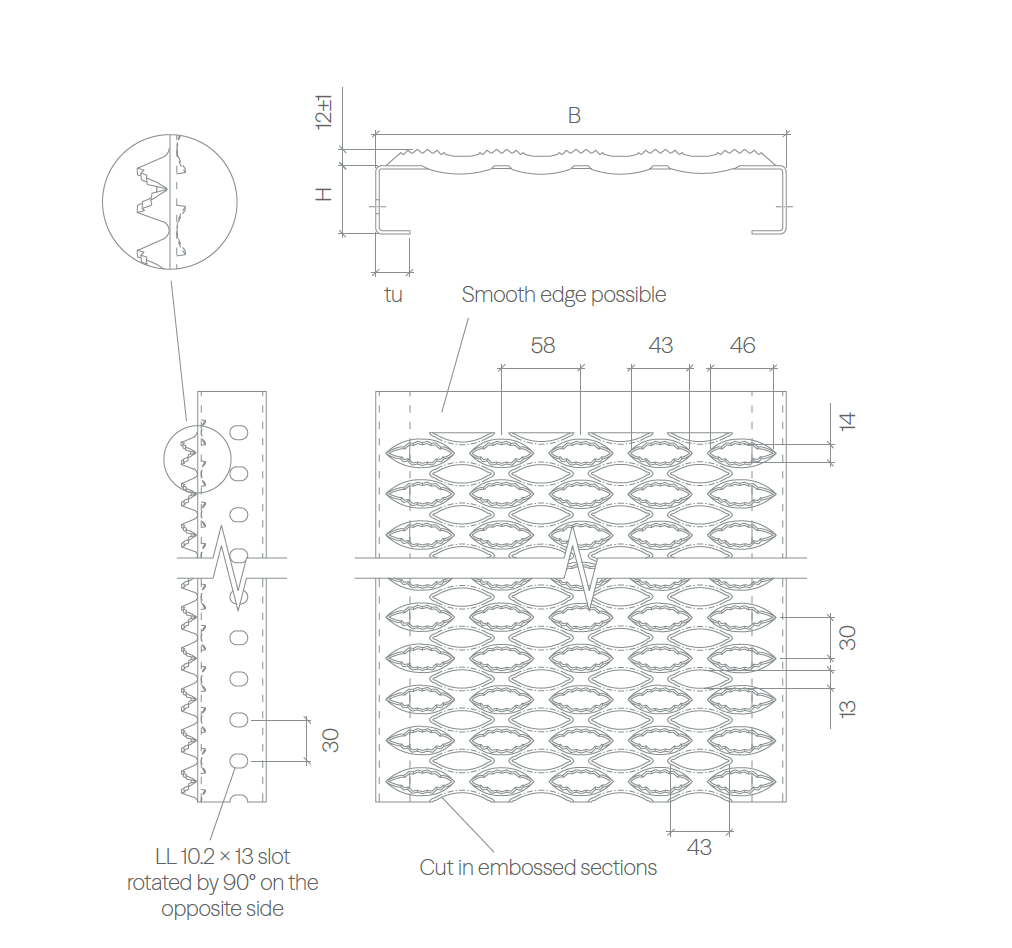

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R12/R13 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R12/R13 |
| Aluminum [AIMg3] | 2,5 / 3,0 | 2,5 / 3,0 |
| Stainless steel [1.4301] | 2,0 | R12 |
| Preferred widths | 124 / 182 / 240 / 298 / 356 / 414 / 475 | |
| Preferred heights | 40 / 50 / 75 / 100 other heights on request | |
| Lengths | up to max. 8,000 mm | |
| Length divider | 30 |
Matching accessories
Attachments for Stepbloc F

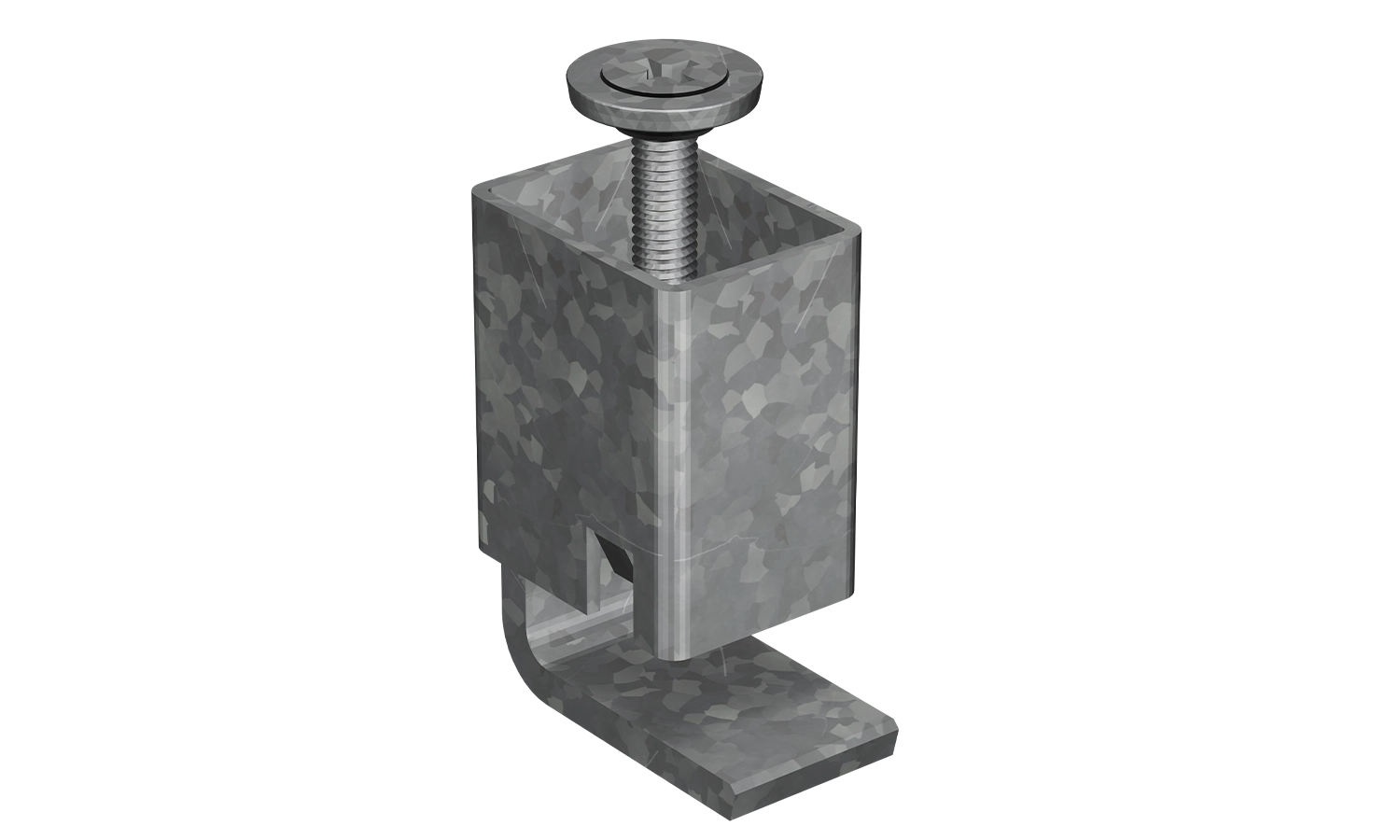

BPR support clip
Supporting clamp connection, pre-assembled, with countersunk head screw M8.
BPR universal clamp
Cast iron clamp for mounting from below, available in different versions.

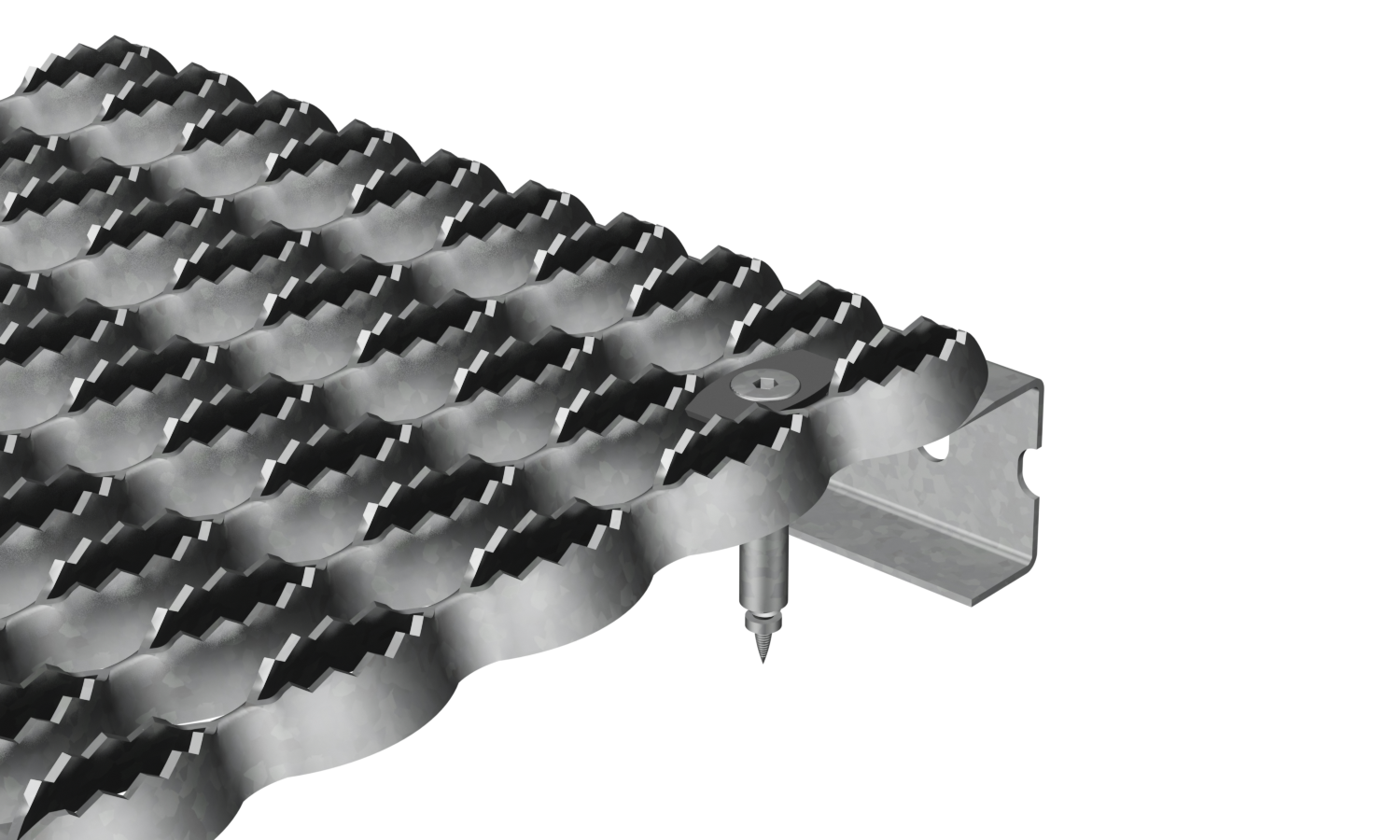

BPR Rondelle T03
Cast upper part for all Stepbloc and Drainstep molds with countersunk hole for countersunk head screws (DIN 7991).
BPR quick fastening
Clamp connection with countersunk head screw M8.
