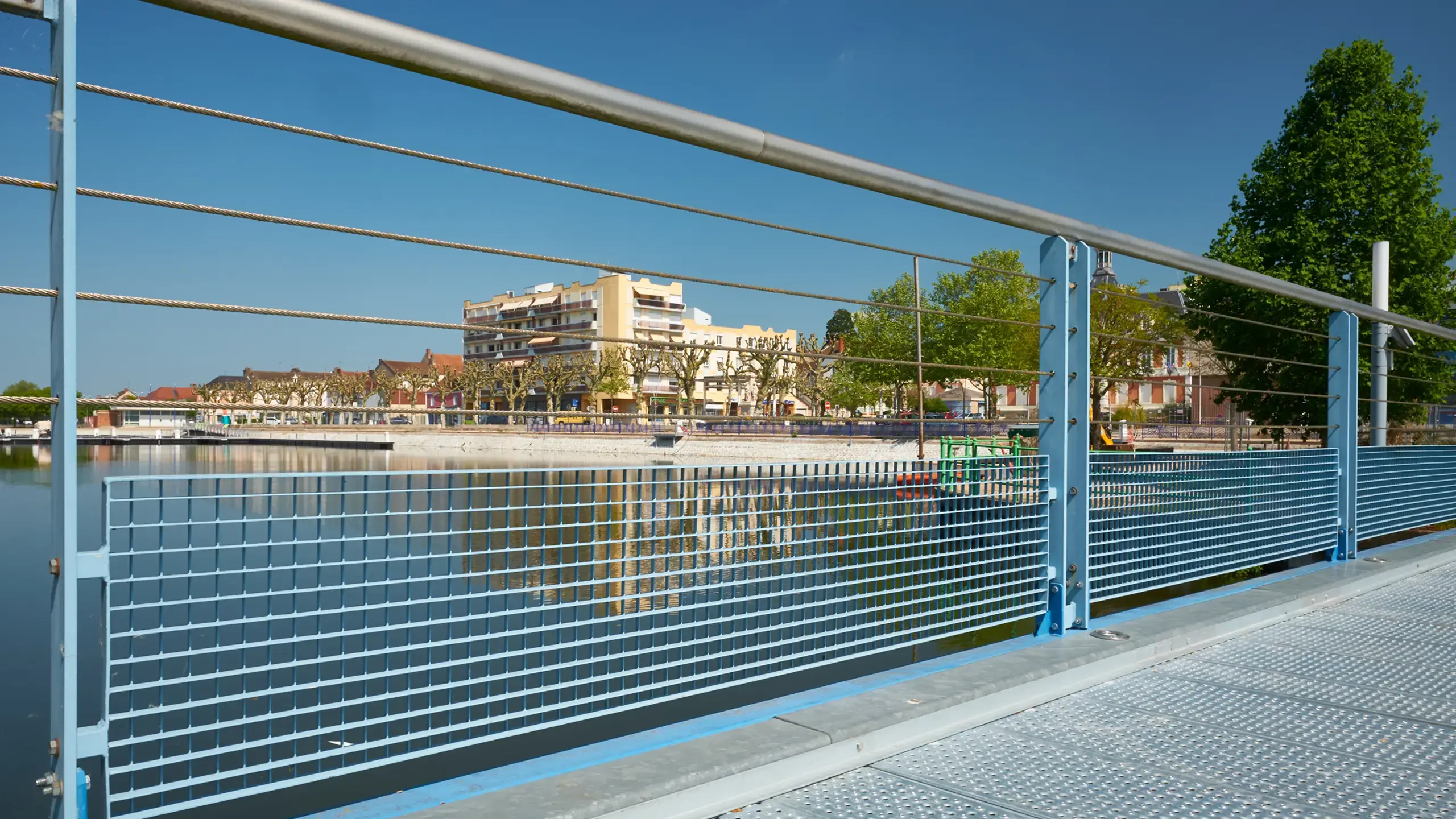

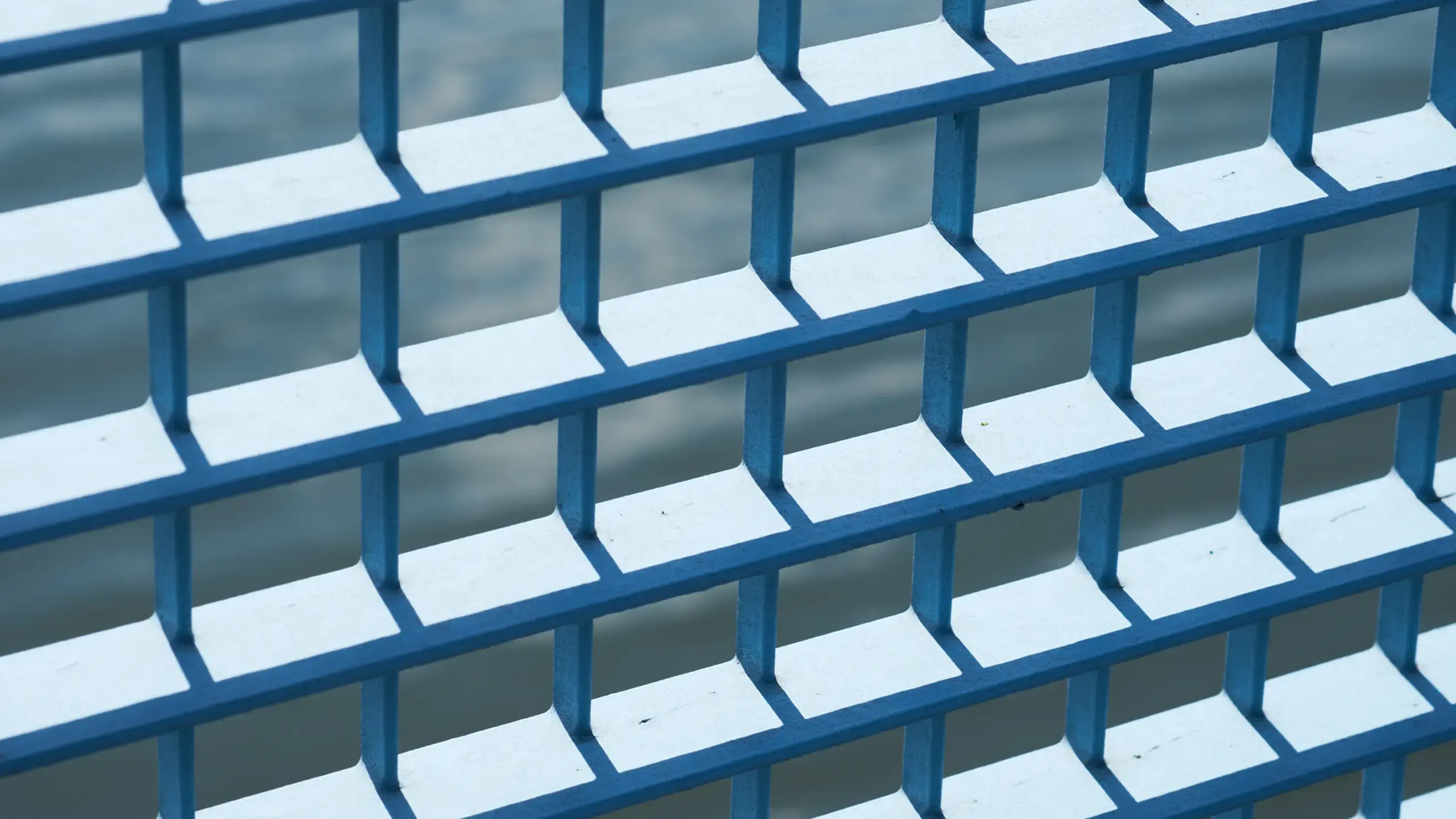

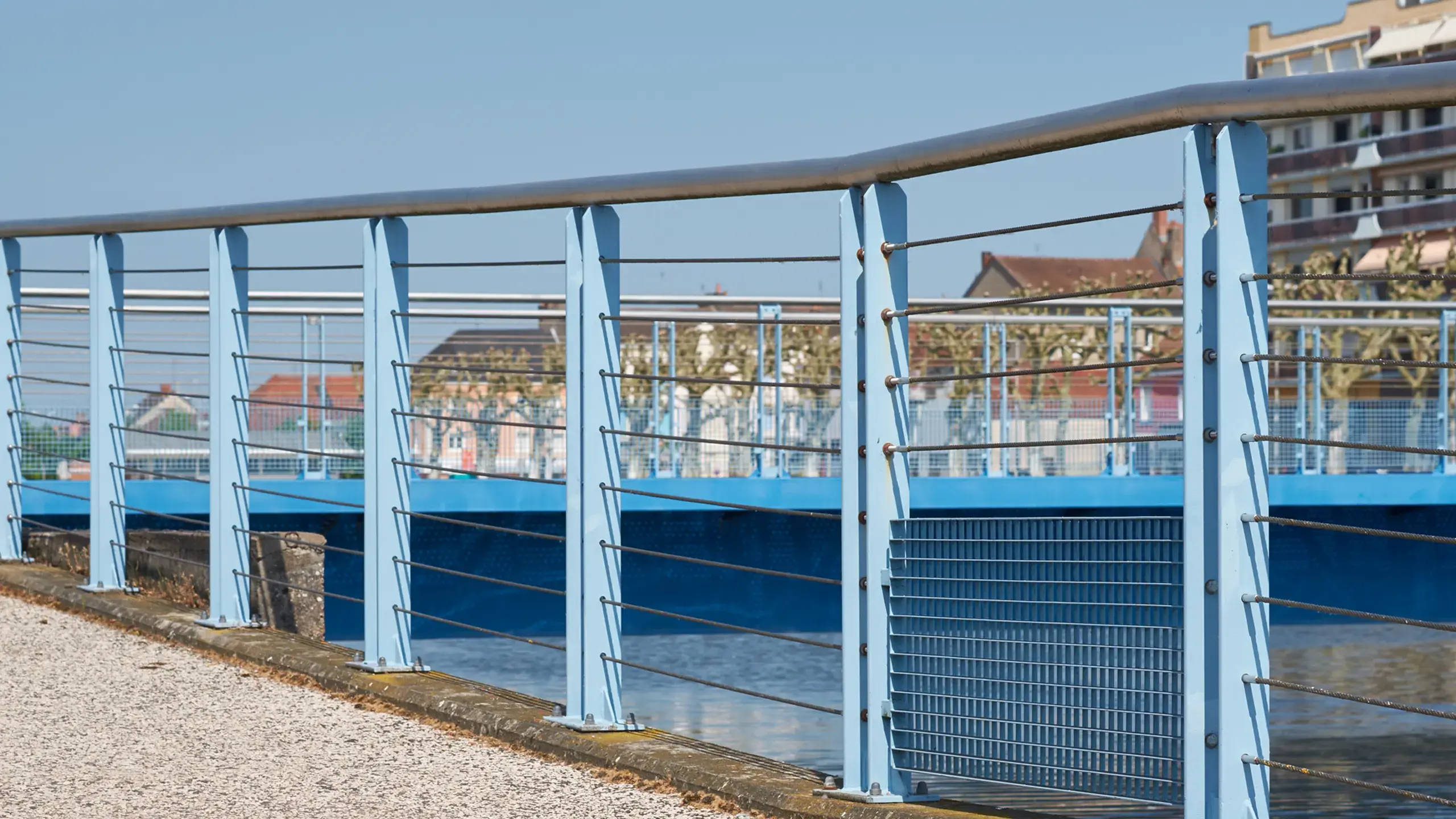

The blue pedestrian bridge is designed as a straight transition and remains clearly visible as an open structure with railings made of cable and lattice elements.

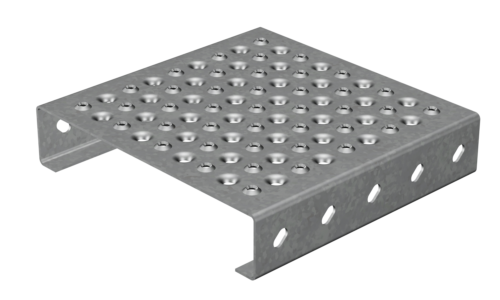

Tolhuit N sheet metal profile gratings were installed as perforated walkways and pressed gratings as bridge railings. The permeable surface supports safe path guidance and allows water and dirt to run off. The result is a robust solution for bridges, floor coverings and walkways in outdoor areas.
Verbaute Produkte
Durable industrial flooring made of steel and fiberglass-reinforced plastic (FRP): grating, profiled sheet metal grating, and innovative accessible solutions designed for safety, functionality, and durability.
Sheet metal profile gratings with different surface embossing are suitable for large spans and closed surfaces.
Thanks to the wide range of available materials and design options, press-locked gratings can be tailored precisely to the requirements of each application.
Gratings are used as robust platform and walkway coverings in heavy industry, architecture, plant construction and logistics.
A grate with small holes at the top and large holes at the bottom.
