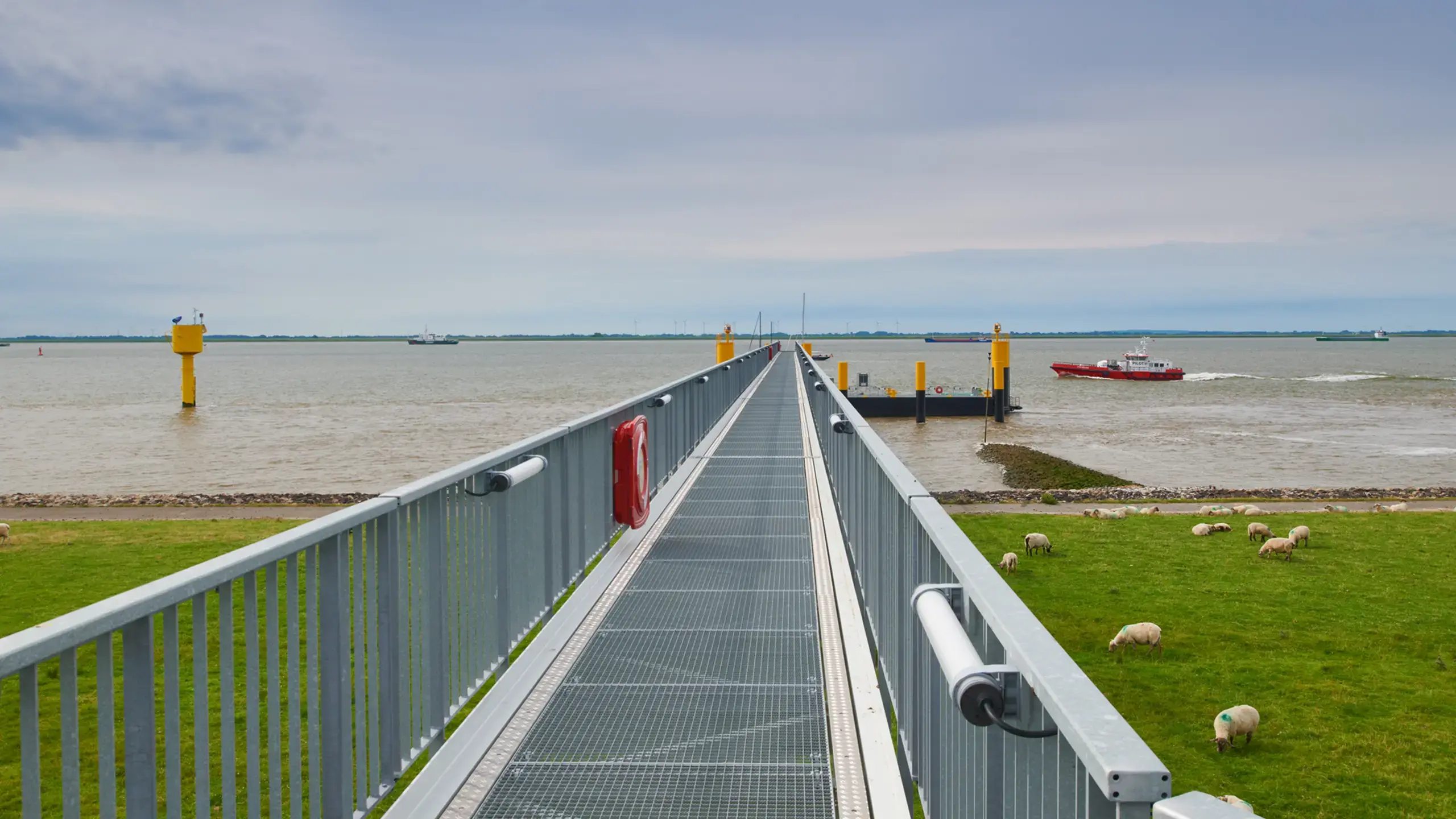

The straight walkway leads right into the jetty area and is secured on both sides with high railings.

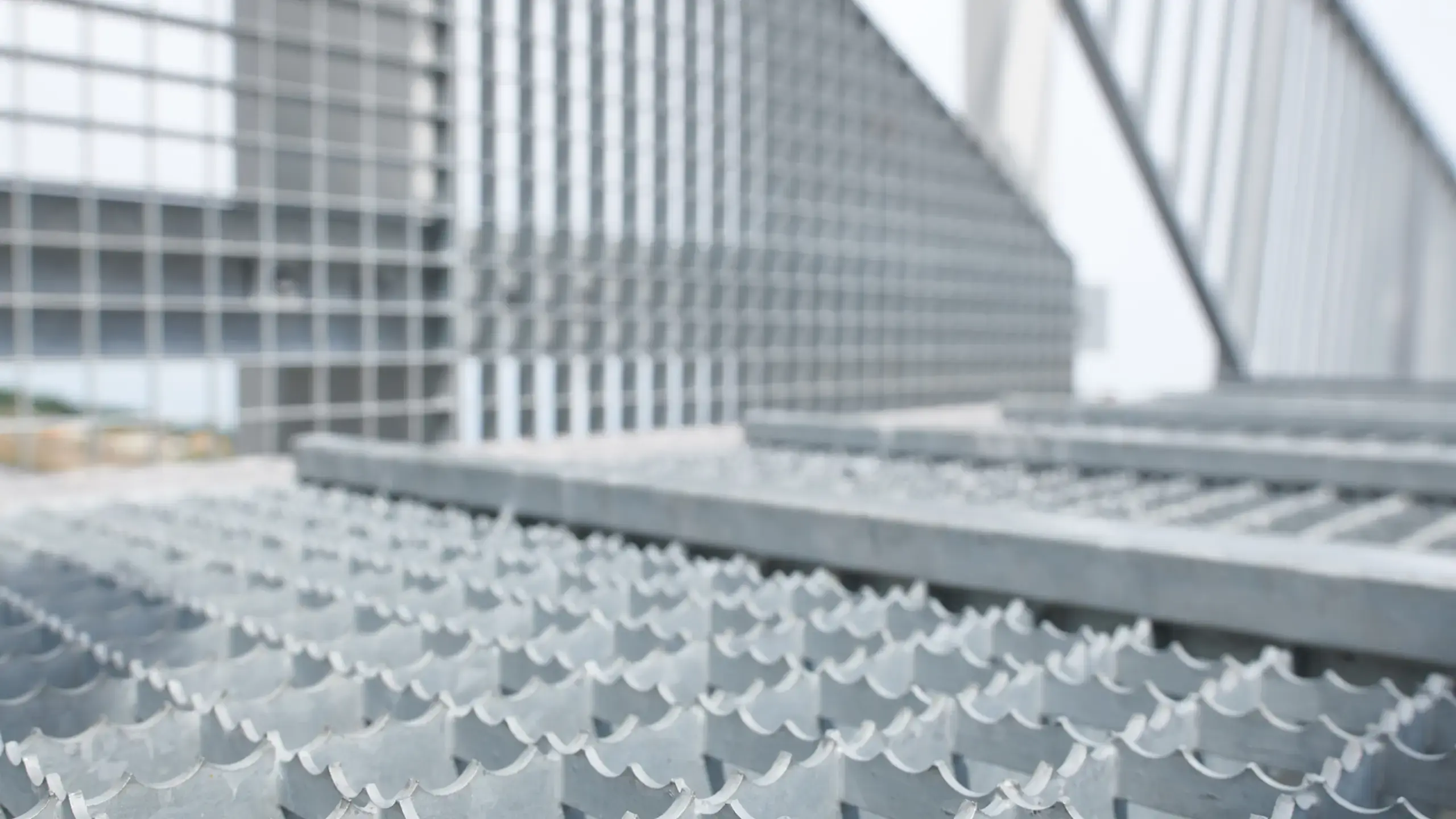

Pressed gratings with SR3+4 anti-slip protection were used as walkways and railing infills with welded-on tread strips. The design is implemented with a mesh width of 33 x 33 mm and a 30 x 3 mm bearing bar. This creates sure-footed, robust path surfaces for long-term use in the port area.
Installed products
Durable industrial flooring made of steel and fiberglass-reinforced plastic (GRP): grating, profiled sheet metal grating, and innovative accessible solutions designed for safety, functionality, and durability.
Gratings are used as robust platform and walkway coverings in heavy industry, architecture, plant construction and logistics.
Thanks to the wide range of available materials and design options, press-locked gratings can be tailored precisely to the requirements of each application.
